01-16-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 101
Post ID: 6367
Reply to: 6354
The new Sound for MF: few days later – you never know…
The new Super Milq is running for a days, amplifying burn-in tracks; the MF channel is loaded to 12R resistor. After a couple days of disgust even to look at the amp I decide to see tonight what happening with sound now and to my surprise Sound did change quite positively. I was playing with my MF and upperbass configuration the Jerry’s Hartmann Shostakovich First Violin Concerto – quite complex music for MF. The plastic colorations are not gone but got reduced almost 90%. The channel picked some dynamic articulation and indicate “some” destruction of tones – very positive sign. It is not perfect yet but it is not as horrible as it use to be. The sound become less noisy and way less “choked”. Who knows, perhaps it is how those polypropylene caps get worked up. We will see what happen next. The Ansars that I use are not new. I bought them in 2001, used for a few weeks and they were sitting in a box since then. Well, if is was Ansars fault, that I am not certain… I will let the amps to but for another 2-3 day and then will see what happens. Anyhow, I NEVER have seen such HUGE amplitude of sonic change that might be explained by burning in parts. Anyhow, I put the amp at high-voltage AC burn - let it to fry...

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-17-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 102
Post ID: 6380
Reply to: 6367
Back to future. MF channel sound. Eventually….

OK, now I recognize my S2 driver, thank God.

I was give to my new PS for MF channel one more change today to show itself off. I relayed the Hartmann ‘s first movement of the Shostakovich First Violin Concerto. As I said above the progress was very nice and the majority of the problems that I was experiencing at beginning were not there or were at much-much less degree presented. Still, there was an effect that I did not like, and since the bigger problem got burned out this “effect” become to annoy me quite annoyingly. I am talking about some strange micro-details and micro-dynamics eliminating noise. Those who use S2 driver properly knows that this driver has an ability to track all engravings of musical texture with a level of discrimination that no other compression driver can approach. So, my MF does not do “tracking” but rather sliding across the texture of event, filing the dynamic indentations with some kind of generic noise. Furthermore, when a tonal event decays into ambiance or is cared juts above ambiance then the event do not decay into “ambianic nothingness” but rather it dives into a “foggy noise-like substance”. Do you know what happen next? What the tonal event ended then the “foggy noise-like substance” is ended.

I really did not know what it is. Bad electricity gives it but left channel have no such an effect. So, I decided to take actions. I got rid the last 100uF Ansar polypropylene cap in MF power supply and replaced it with my well tested and well beloved 250V/3000uF  Nichicon electrolytic and just “in case” bypassed it with 100V/1uF MultiCap RTX.

When I turned the amp back (again the MF and upper bass only) it was with the very first none obvious that ALL problems are gone. You remember the bass section opening of the Shostakovich First Violin Concerto? Before, playing it juts with MF it was not sound from channel but a spray of radioactive noise.  Now it was… nothing “radioactive”. With the very first second of the play I know that the problem was not there anymore. The rest of listing was nothing new to me and I did not detect any issues of any kind that would make me to be concerned. So the journey with power supply for one-stage amps is over. One more notch on the project. Now I might covert the left amp to dedicated PS for one-stage amps and the entire project of 6-ways Super Melquiades will be over

Does the new dedicated PS for MF one-stage amps sounds better than in the situation when I sors3ed voltage from B+ of 6C33C? I do not know. Perhaps before I convert the left amp I would need to make this observation for myself… Perhaps I should… anyhow, now I am happy. Well, happier…

The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-17-2008 Post does not mapped to Knowledge Tree
hagtech


Hawaii
Posts 117
Joined on 02-13-2006

Post #: 103
Post ID: 6381
Reply to: 6380
Film Bypass

I bet if you take that RTX off it don't sound as good.

jh

01-21-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 104
Post ID: 6400
Reply to: 6380
The Super Milq’s Power Supply

Here is a semi-final draft of 6-chennals Melquiades Power Supply. Since I use my site pretty much as a notebook would like to have the diagraph posted in this thread for my personal references.

http://www.RomyTheCat.com/PDF/6way_Melquiades_PS.pdf

At this point I will pu on hold my interests with use the gas tubes and with 50W zener 1N3350 diode instead of capacitors in singlestage amps as what I have now does incredibly well. I have a bank of 5  2uF film caps that run AS signal over 500Hz. Enough...

Rgs, Romy the Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-22-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 105
Post ID: 6404
Reply to: 4973

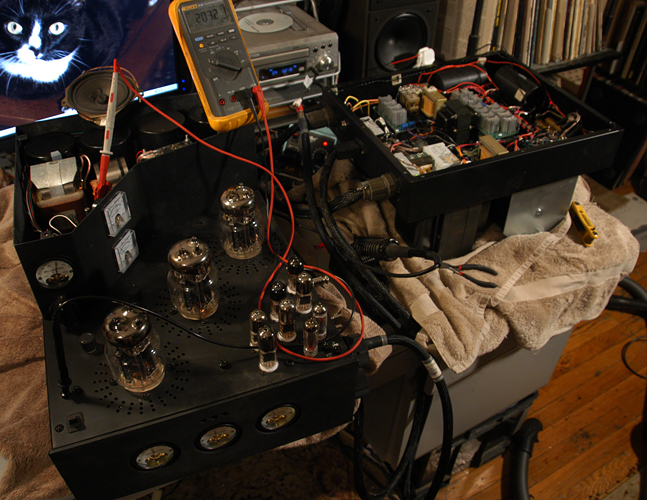

Super Milq 6 channels diaries: one is done…
Eventually the right channel of the last revision of the 6-Channel Super Melquiades is complete. It has the new dedicated power supplies for single-stage amplifiers, the 600V Schottky rectification for 200V line and 1200V Schottky for 400V lines, the film filtration for single-stage amps, the new set of toroidal transformers for B+ of the second stage, improved PS for bass channel, and some other very minor optimizations that I developed after my using of the 6-Channel Milq and after I got more experience to build this damn heavy thing. The Amp is 78 pounds and the power supply is 74 pounds. The amp and power supply are full tester and ready to be closed up, hopefully for good. Any further play with sound might be only via the tubes from outside, so the project for the last channel is officially over. It is only left to clean the thing up and… to implement the changed on the left channel (which will not be difficult).


I found 1.5 years old pictures when I just started to make 3-Channel Super Melquiades, they are posted below - first 4 images. It was an interesting but very wearing journey. If I knew I would not go for it. However, it is through now and as a friend of mine said “you would no need to do it again”. After all that pain I am glad that Macondo’s amplifier sounds in the way how I what and how I understand it but not in the way how somebody else desired for me. I am also glad the Macondo’s amplifier serves the explicit Macondo’s needs and Macondo demands. Will, the 6-Channel Melquiades’ idea changed in future? It all depends how critical I will be with the results that Melquiades-Macondo will serve in a long run. So far the Melquiades-Macondo presence a pinnacle of my personal design understanding how playback might sound, and the actual sonic result that I was getting for the last 3-4 month suggest that I was in a right direction. If I discover eventually specific aspects that dissatisfy me and if I learn that they were due to the amplification then it will be a motivation for thinking further. Until them I am planning to live with Macondo-6-Ch-Melquiades setup.




"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-23-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 106
Post ID: 6407
Reply to: 4973
How to measure the amplifier input impedance?
Can someone help me to calculate the input impedance of the 6-chaenal Milq?

It is cannot be measured as a regular DC impedance as it is affected by the active impedance and the by positive and negative voltages from the bias supply and the bias compensators. Furthermore, since in the Super Milq the bias resistors are combined with filtering resistors, + multiple channels involved then total impedance is a very complex to compute. I was trying to keep the passive impedance roughly the same across the channels (~30K-35K) but how can I determine exact effective impedance of the entire amp taking the bias voltages and the gas tube in perspective? My approximation suggests that it should be around 9kOhm but I would like to know the exact and the confirmed number.  I wonder, perhaps is any way to measure the impedance exactly using some kind of parallel or substitute masuring methods?

The entire input circuit if here: http://www.romythecat.com/Site_Images/SuperMilq_6Ch_24.jpg

Thank you, Romy the Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-23-2008 Post does not mapped to Knowledge Tree
hagtech


Hawaii
Posts 117
Joined on 02-13-2006

Post #: 107
Post ID: 6408
Reply to: 6407
Not a Single Value
The answer will be a complicated one, as the preamp is driving an active crossover.  The many storage elements means the impedance is a function of frequency.  There is no "10k ohms" answer.  I hope you are driving these network with something powerful.

You could always simulate the elements in SPICE.  That could give you a Bode plat of impedance amplitude and phase, just like the graphs seen in stereophile.

I do something much simpler, and will give you an approximate result.  Put a small capacitor in series with the input.  Say 0.022uF.  Measure the LF -3dB point.  This highpass filter will rolloff at 800 Hz for a 9k input.  Similarly, you can measure the output impedance of the preamp by adding a cap to ground, measure the HF rolloff.

R = 1 / 6.3 * f * C;

jh
01-23-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 108
Post ID: 6410
Reply to: 6408
Sakuma said the preamp is lungs of a playback….
Thanks, Jim, and thanks to everyone who replied in direct emails. Summarizing what was advised to me it looks like as now the input impedance of the amp is around 4.5K. That was roughly what I would like to have, though I would like to go even further. Perhaps I need to use lording resistor of much less value. I wrote in the past that my cables love current-loading. Perhaps I would even need to drive the entire voltage of bias gas tube across the cable as I did in past and to see how it will bias the sound of the cables. Meanwhile, while my Preamp at Guy’s tune-up shop I asked him to drive the buffer impedance all the way down to a few Ohm and to bias the output stage as hot as possible. I do not think that I will be able to make the final conclusion about the appropriate loading until I have my bass channel is connected and my "new" preamp back. I do detect that sound is very dramatically change with 6-way amp when I rise output impedance of mysource. I have no preamp now as use the vintage (means sounding nutral) EVS attenuators. The Bidat with it 38R output impedance drives the new  6-ch Super Milq just fine. Juts two clicks on the EVS attenuators made sound to lose dynamics very substantially. Well, here is why those “strange” people are trying to make a preamp using 6C33C….


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-23-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 109
Post ID: 6416
Reply to: 4973
The Macondo-Melquiades New Sound.

I pack up the new amp today and plug it in with my right Macondo channel. The electricity was not bad I was VERY surprised with the fact that the new amp sounded MUCH more advanced then I anticipated from a chance of MF channels power supplies. The lesson learned: never ever ever ever try to save money and efforts for MF channel. I will talk more about the Macondo-Melquiades New Sound but for now I would like to mention one monumental achievement that the Macondo-Melquiades tandem has accomplish.

I has NOT been talking about it for years  as this subject is absolutely unknown to audio people and frankly I never head heard from ANY playback  that encourage to think about it in context of playback. I am talking about an ability of playback to create mechanical sound. I am talking about Mechanical Sound reproduced by the acoustic system of playback it never happened...

Never say never and I have heard it before. When I was 10-11 years I played my grandma 78s. I still very distinctly remember that sound and I do remember that grandma’s 78’s did have the sights of mechanical sound but they had not fidelity of Sound.  A few years ago I experimented with intentionally wrong cartridge mounting that mimic the Mechanical Sound, again the fidelity was not there. Now, completely without my anticipation the Macondo-Melquiades throw a very surprising ability to attack the Mechanical Sound only it dose it at very serious level of fidelity. The sound is wonderful but all this none-musical events of recording got a new level of realism, kind of spooky realism.  Do you know that feeling what you drive a car with very high level audio installation and NPR play  some kind of ad which has siren or beeping in it and you for a second do not know it is your radio or it is somebody signal you from the traffic outside?  The very same with the new Macondo-Melquiades. The individual sounds get a new crazy level or realism, so real that I was confused at beginning. The slips of bows, the air coming from valves, the plucking of strings upon fingerboard, the sticking of the strings to the abrasiveness of the skin suddenly go not the stupid prominences (courtesy to the stupid OTL amps) but a very distinctive sense of realism – they just do not some like recorded. I was initially thinking that my S2 drivers was scratching gap but it was not.  The sound that the MF channel is as close to be mechanical-like as I ever experiences – very very welcoming sign.

Sure, music is not the artifacts of recording but do not worry the musical information itself is presented at the very same level of Mechanical Sound the level of Mechanical disambiguation and sensible reality. Interesting that the Mechanical Soundnes of music is very useful but the Mechanical Soundnes of the recording’s artifacts sound… a bit strange as now.  Each time a cello develops a body crack  or the player move the hard stopped finder across the bass strings then I really feel a temptation to walk to the speaker and  to realign the diaphragm…

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-24-2008 Post does not mapped to Knowledge Tree
N-set
Gdansk, Poland
Posts 454
Joined on 01-07-2006

Post #: 110
Post ID: 6417
Reply to: 6416
Realism of non-musical micro events
if that's realism ---congratulations!!!
if that's SuperRealism or realism+,  i'd be worried.

cheers,
jk


Cheers,
Jarek
01-24-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 111
Post ID: 6418
Reply to: 6417
The Intensification of Reality: good/bad vs.right/wrong.

Good concern, I had and have it as well. I do not have an answer at this point. It should be stressed that my description of artifact was just my specific description of THE artifact, the MF texture  music had also a “face lift” -  I just did not speak about it.

Still, a “better” sounding musical instrument does not create a Pavlovian Reflex to Mechanical Sound, the artifacts do. I am family very well with the hyper-resolution results and I am concern do not be hooked on this, again and again. I do not know as now how the Intensification of Reality with new Milq MF channel will work out for me on a long run. Even if it is the hyper-resolution then it is a hyper-resolution at another level and I have with this DSET some means to moderate the harmonics that supports that hyper-resolution. I never was able to do it with any other situation without screwing anything else. Nevertheless, I do not feel, at least at this point that the “Mechanization” of Milq’s MF Sound is some kind of Surrogate Realism. You see, the motor reaction to some things that the MF does now are very nature and very not contrived. It is like a dog that hump a picture of a dog that he sees in a book… it is kind of different experience then to hear a hyper-resolution layback, it is hard to explain and it should be heard.

Sure, I need to live with it for a while to see what happens next. I am wondering what the reason was.  Perhaps the people who were bitching about the electrolytic caps were right after all. In the MF channel in a past I got a major advance when I got read of cap in line-level filter replacing it with a coil. Now my MF signal has no capacitors in signal path (including PS) beside 10uF of very high quality Cube 950. Perhaps that made the trick? What else I change: a new transformer, new choke and new Schottky diodes… I think still it was primary die to the new way of use capacitance - in DSET codification I might go away with it.

How much useful value it has? Well, I will wait for a final conclusion in a week or so when the PS with its caps will burn-in but so far the result is more than pleasing and very promising. BTW, what also is very interning is that now HF can tolerate +6 dB without being too hot.

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-24-2008 Post does not mapped to Knowledge Tree
N-set
Gdansk, Poland
Posts 454
Joined on 01-07-2006

Post #: 112
Post ID: 6419
Reply to: 6418
Damned caps
just a minor tech remark (feel free to ignore): the big-ass elco is theoretically still
well in the picture. 10uF will have 320Ohm@500Hz, which is
a fraction of 20Ohm R+3mF elco.

>You see, the motor reaction to some things that the MF does now are very nature and very not contrived.

exciting!!

jk




Cheers,
Jarek
01-24-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 113
Post ID: 6420
Reply to: 6419
Jk, actually it is not exactly accurate

 N-set wrote:
just a minor tech remark (feel free to ignore): the big-ass elco is theoretically still well in the picture. 10uF will have 320Ohm@500Hz, which is a fraction of 20Ohm R+3mF elco.

Jk, actually it is not exactly accurate.

As I understand the AC signal flows from anode to PS and see 10uF cap and 25R resistor. It will pass the 25R resistor and go to electrolytic when the filter what the AC frequencies sees is above the 25R resistor. With 10uF cap we have 25R resistance at 630Hz so the higher frequencies (above 630Hz) flow to ground via the film 10uF capacitor and the lover cross frequencies the 25R resistor and get shorted in the big electrolytic cap. Well, of course the “the big-ass elco is theoretically still well in the picture” as it is just a first order filter and not a break wall switch and the higher frequencies are juts divided between the paths back proportionally to impedances. Still, at 630Hz we have 50% go to film and 50% to electrolytic, however the MF is filters at 3200hz that makes juts fifth of AC signal go to electrolytic cap.  BTW, I made another tweak in there and just before the electrolytic cap I put a poster for electrons saying:  “If you are HF then turn your ass back to the film capacitor”. It looks like since I pit that poster the sound become “much better”. Now, the film cap is made in Mexico, so wait until I pit the poster in Spanish….

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-24-2008 Post does not mapped to Knowledge Tree
N-set
Gdansk, Poland
Posts 454
Joined on 01-07-2006

Post #: 114
Post ID: 6421
Reply to: 6420
I can translate it into Spanish...
...if you wish. even with Mex flavour ;-)

I'm sorry I was imprecise. I ment exactly what you said...and forgout about 3200Hz...
but I think that there is something more interesting going on here: what you have here
is rather a rare instance of an intelligent bypassing (as opposed to anal
excersises of usual "bypassers" tweakers, let they die in long agonies with their caps)---the 25ohm R eventually damps the
tank formed by prasitic esl of the elco and high quality film caps!

jk





Cheers,
Jarek
01-24-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 115
Post ID: 6422
Reply to: 4973
My Melquiades DSET full circuit.

Here are the basics of the 6-Chennal Melquiades DSET Amplifier complete, without secondary features.

http://www.RomyTheCat.com/PDF/6-Chennal_Melquiades_DSET_Amplifier.pdf

Rgs, Romy the caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-24-2008 Post does not mapped to Knowledge Tree
Paul S
San Diego, California, USA
Posts 2,144
Joined on 10-12-2006

Post #: 116
Post ID: 6423
Reply to: 6422
Relative level options?
So, separate wipers only for injection and HF, or are there other means to adjust relative levels amongst/between all channels?

Best regards,
Paul S
01-24-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 117
Post ID: 6424
Reply to: 6421
One more advantage of DSET topology

 N-set wrote:
… I think that there is something more interesting going on here: what you have here
is rather a rare instance of an intelligent bypassing…

Yes, it is highly intelligent and looks like it is highly effective sonically. It is not my idea and the intelligence came from my advisers, one more time: thanks to anybody who have played along.

What again and again I would like to stress is that the opportunity for that intelligence actually have organically derived from the nature of DSET topology and I was able to go away with it because the MF channels operate in a narrow bandwidth and have dedicated power supplies. In case of a full-range oration we would defiantly would like do not have a frequency-reactive power supply but in DSET world each supply might be explicitly optimized for a narrow operation range. In fact, I am so pleased (so far) with what I got that I am not violently considering a thought of converting my upperbass channel to the same pattern. I can raise PS impedance for upperbass (as it is high-passed) and if I found a very good quality 100-150uF film capacitors (not the Ansar/Solen crap that I have) and if I found a space in my amp then I might go for it.

Rgs, the Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-24-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 118
Post ID: 6425
Reply to: 6423
It was well thought out.
 Paul S wrote:
So, separate wipers only for injection and HF, or are there other means to adjust relative levels amongst/between all channels?
The Injection, HF, and Fundamental (via speaker level LPAD) are the only channels that need adjustment. Other channels do not need it any adjustment. The acoustic output of MF and Bass channels are identical and the upperbass is attenuated by 30R/12.1R voltage divider sitting the upperbass’ input. My presumption is that if I move even in a larger room and the output of Upperbass and Bass will go down relative to MF channels then I have ~ 12dB spare in upperbass (via the divider) and in bass channels I would add more LF section to my woofer towers…


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-27-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 119
Post ID: 6461
Reply to: 6404
It is over.

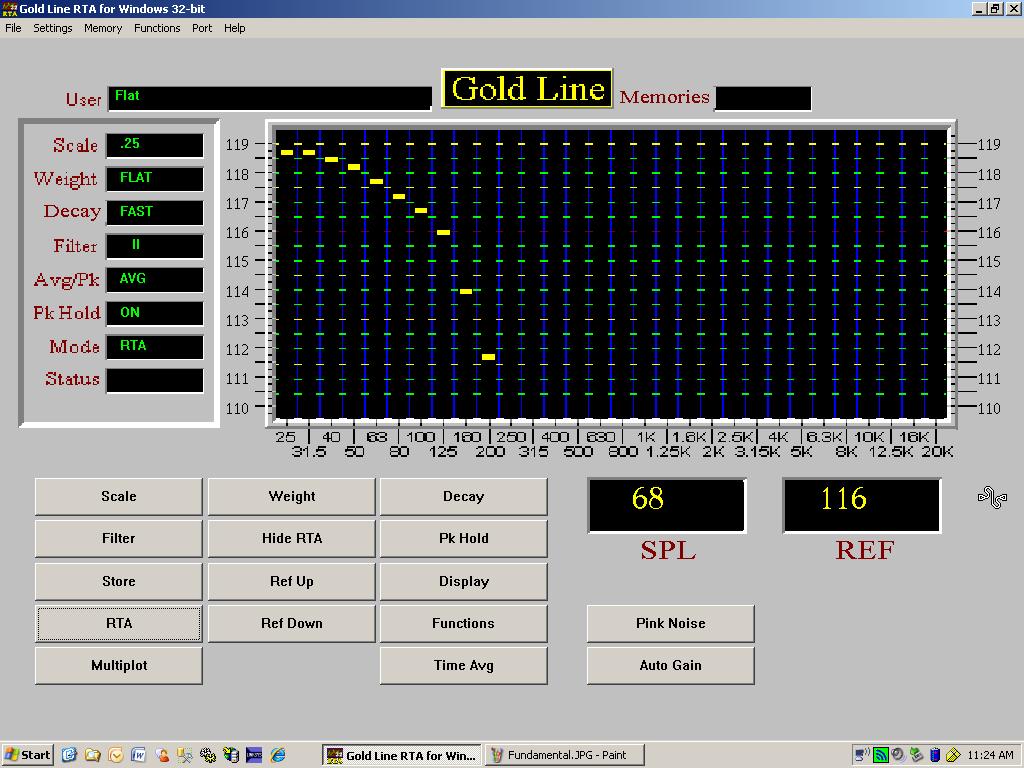

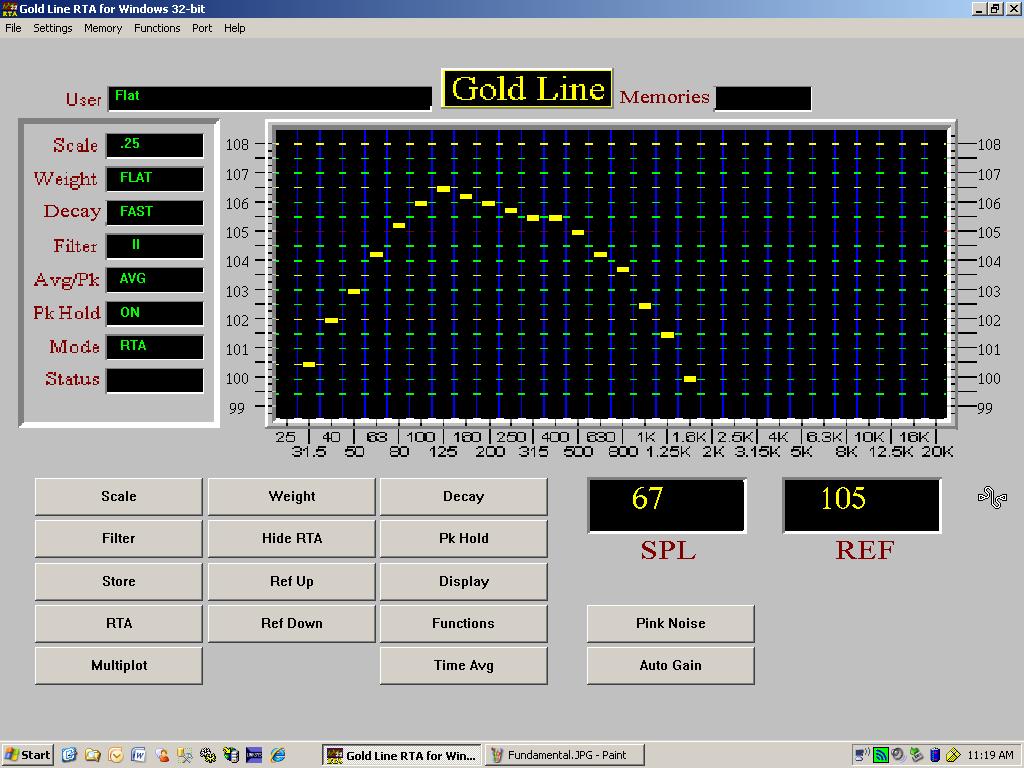

Ok, the left channel of the 6-ways Melquiades is converted and got all recent updates, calibrated, measured and the entire project of the 6-ch Milq is officially over. Both amps closed up and I see no reasons to open them up again. They are thermo stable, run mechanically silent (extended toroidals really help) and I am, very glad that it is all aver. At this point the only task is left is an external task – to found a way to calibrate the gain of each channel, but I have pretty good idea how I will be doing it.

The Cat


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-28-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 120
Post ID: 6466
Reply to: 5939
The Super Milq’s biasing scheme in Colors

 op.9 wrote:
Could you help me understand your biasing scheme with this version? I thought I understood the original Milq circuit - but the only channel that looks like that to me is the D channel. I don't get A and B at all! what is the 50 ohm resistor doing? is it just a grid stopper? I assume you can adjust bias and 0v at input in each stage - but don't the two red legs (on channel B for example) work against each other?

james,

I was tiring to do it before in:

 http://www.GoodSoundClub.com/TreeItem.aspx?PostID=5940

….but here is even a better opportunity. In the recent circuit I drew (BTW, I very proud about it) I made the positive and negative bias lines with different colors that makes the entire circuitry extremely easy the understand.

http://www.RomyTheCat.com/PDF/6-Chennal_Melquiades_DSET_Amplifier.pdf

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-28-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 121
Post ID: 6473
Reply to: 6404
The ridicules Nichicon capacitors.

Here is a stupid need of DIY audio level. As many of you know am big lover of Nichicon electrolytic capacitors, even their lowers grade sounds right to me and never made to think about anything better. Still the Nichicon never stopped to surprise me.

In Super Milq I have a first caps in the B+ of the first stage supply. It is 100uF, nothing special. I use usually regular LK line, which is base commercial grade. However, I make a stupid mistake and instead of 450V put there 250V/100uF cap. The voltage after the bridge is 440V with 115V on primary. Now I have much high voltage in mains that make on secondary 475V… and it is all loaded after a choke with 73 DCR to a …250V capacitor? So, what do you think happed when I connected it? Well, it is not only nothing happened but…. I realized that it was running like this for a week!!!! Wow!!! The heat off to the Nichicon Corporation and their capacitors!

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
01-28-2008 Post does not mapped to Knowledge Tree
Paul S
San Diego, California, USA
Posts 2,144
Joined on 10-12-2006

Post #: 122
Post ID: 6474
Reply to: 6473
Great, yes, but hardly a "sleeper"
Of course you know,Romy, but others may not know/remember that Nichicon have always had great specs, and years ago they were a "secret weapon" in the high end.

But lots of the DIY guys are computer geeks in their day jobs, and The Story is that Nichicon had a couple of bad batches of caps that fried some serious computers, in fact whole lines of computers, and that has hurt their reputation and their sales, to this day.

The irony is that one never knows how much substance there really is to such stories.

Still, ripple specs for their top caps are off the charts, so it's not like you're using cheap-o, off-brand stuff from a surplus store, like those old motor run caps, etc.

BTW, I admit that I also went off them after "The Troubles".

And when I finally took the lid off the iDAT 44+, what do you think John Wright uses? (one guess)

Best,
Paul S
01-31-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 123
Post ID: 6513
Reply to: 6416
The “new” Melquiades Sound

I am kind of at lost, as what is doing on with my playback is surprising to me. With a pair of new 6-ch Milqs, more or less acceptably calibrated (but not perfectly), the system begin to throw some very astonishing effects, so astonishing that I am very convinced that had I never heard Sound like this nether from my playback nor from any other playbacks . The “new Sound” is not “goo electricity” related as I know what comes from electricity – what I am getting now is not that.  The new 12 channels of dedicated amps, direct driving Macondo’s channels made some extremely profound “strategic” advancements within Second Level of listening perception:

 http://www.GoodSoundClub.com/TreeItem.aspx?PostID=59

I do not know what responsible for it – lowering of intermodulation distortions or anything else but the fact of recent huge positive changes is undeniable. I will post in future some thoughts about some specifies of that “new sound” but for now I would like to chew upon what I am getting from the playback.

The caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
02-02-2008 Post does not mapped to Knowledge Tree
Romy the Cat


Boston, MA
Posts 9,535
Joined on 05-28-2004

Post #: 124
Post ID: 6536
Reply to: 6513
The New Milq DSET, some comments about Sound

Something had changed very positively with multi-amping. I am not quite sure if it is because the full multi-amping of the specific of the implementation but it is what it is. The entire dynamic relationship between volume of a given tone and the tone’s vibrant properties become much more remarkable. There are many other inversing observations about the new Milq sound, and they relay keep me in unexpectedly-delighted state, but at this point I would like to accent this one: Melquiades got smarter.

If you read the few comments below (let try my new search engine):

http://www.romythecat.com/GetPost.aspx?PostID=4247

http://www.romythecat.com/GetPost.aspx?PostID=3207

http://www.romythecat.com/GetPost.aspx?PostID=6048

http://www.romythecat.com/Forums/ShowPost.aspx?postID=672

http://www.romythecat.com/GetPost.aspx?PostID=2091

http://www.romythecat.com/GetPost.aspx?PostID=1816

..and many other comments from the period when I was discovering Milq’s sound then you remember that one of the most remarkable and distinctive characteristic of the Melquiades amplifier I consider something the I called Milq’s “Dynamic Viscosity” and the “Volume Intelligence”. It means that Melquiades has own intellect that knows how to react to soft and to loud passages differently. It is all comes from the bias of 6E5P/6E6P but the technicalities are not subject of this post. So, Milq’s driver stage kind of self-adjusts itself and reacts differently to loud and soft moments of music and the driver stage somehow implements the velocity of changes of loudness VERY differently than any other amplifier I am familiar.

I have to make a comment here. I certainly can say any BS about Melquiades. Very few people ever heard driving properly loaded and practically no one build Milq out there. So, I can go away with any of my drooling, even foolish, about actual or imaginary advances of Melquiades Sound. Well, whatever it is. The Milq is publicly available, feel free to accuse me in laying. However, do not approach Milq from the position of senseless stupid engendering of from a position of DIYAudio counselor – I will send you to fuck yourself and it will be the only activities you will be qualify to do in audio. Many of you have been doing it for years, despite of “30 year of experience” and own sense of audio pretentiousness…

So, the “Dynamic Viscosity” and the “Volume Intelligence” is the very kinky keys of the Melquiades sound but what have happened with it in the 6-Chennal Melquiades DSET?

Well, the amplitude of the Milq’s Viscose Intelligence got wider and the Volume Intelligence have increased it’s range. Before Milq was able to cared loud passages with force and aggressiveness if the music called upon the aggressiveness but at the same time Milq was able to be very gentle and very considering when music called for placidness and softness. Now, with 6-Chennal Milq DSET the forcefulness of the higher dynamic range got multiplied by a very large number. That is itself is a phenomenal think but along with advances in vigor at upper dynamic range the amp go absolutely stunning sense of effortless of getting there. The musical crashes got cleaner, less confusing but at the same time much more intense and more passionate. Perhaps it relates to loosing intermediations via multi-amping of perhaps it is because the way “cleaner” sound from upper channels… I do not know. It is kind of interesting, the upper channels during loud passages sound almost “thin” but as soon I inject more second harmonic into them I realized that it is not “thinness” but a very new level of cleanness. Balancing that new “clean” MF/HF sound with proper lower MF and Fundamentals super I got so slick sound at orchestral crashes that I make me audio-ecstatic…

OK, from another side there are low-level soft signals… I have no idea why but the low level discrimination of details went way over the roof. Even at 16 bit if I go for -50-60dB signals they suddenly became to sound with unseen character and unseen temperament. It looks like Milq, even at the level where  16 bit begin to bare itself into nose grabs the information and pamper it with some kind of special attention. I found myself during the last few days to drive my high voltage output DAC to drive wide opened New Milq and playing music recorded at very low level (opening of Pathétique, opening of the Saint-Saëns last symphony, some Mahler, etc…). I was surprised again and again how Milq could dive into depth of dynamic range and search there for even of its attention…

However, the most stunning thing is HOW Milq moves across the dynamic range – it does it in a way how it wants and I love each second of it. It is hard to explain and it needs to be experienced. It does not do it too fast (typical for OTLs and another crap) or too slow (typical for DHT with overloaded driver stage). Milq does it with own pace, the pace that Milq chose for itself at given moment… according to the current musical volume and the dominating frequency range. Absolutely amassing feeling, particularly taking in account the Macondo/Milq tonal pyrotechnics…

Let me in the end give you an association about the Melquiades “Dynamic Viscosity” and “Volume Intelligence”. Pretended that you are at the bottom of a tall building and somebody throws a very fragile glass vase to you. The mass of the vase is 1Kg, you need to catch and your task is to ketch it at minimum distance from ground. If you catch it too high then the vase will be stopped to high ground and it you catch it too low than you will have too little space to apply the necessary contra-inertia movement and the vase will be cracking in your hands. You have eventually figure out how to catch the vases and how slow down their fall in order to keep them from cracking and in order to stop them as close to ground as possible. Now it is not just 1Kg vase is thrown but many different vases with different masses. This time you need to moderate dynamically the elevation where you catch the vases and the strength you need to apply in your hands in order to compensate the mass inertia, still keeping the slowing down of the vases with the acceptable G- acceleration             that the fragile glass would be able to survive. Now, If you got what I meant and understood all my misspellings, then you have a basic understanding how Melquiades “Dynamic Viscosity” and “Volume Intelligence” might sound.

Rgs,
Romy the caT


"I wish I could score everything for horns." - Richard Wagner. "Our writing equipment takes part in the forming of our thoughts." - Friedrich Nietzsche
02-02-2008 Post does not mapped to Knowledge Tree
Paul S
San Diego, California, USA
Posts 2,144
Joined on 10-12-2006

Post #: 125
Post ID: 6537
Reply to: 6536
Multiple Sweet Spots = 1 Big One

Well, as I understood it the strategy from the beginning was to use a number of specialized/optimized "channels" working together as opposed to the usual single amp or two amps for FR, and from your descriptions above it seems like you're getting what you sought, along with some bonuses.  No doubt the specialization has factored large, but in looking at the schemos for both the amps themselves and their power supplies, they are pretty sophisticated, as well.  Nor did you stinge on transformers...

Not to rush your exposition, but how are LF and HF now, and how is channel/channels integration?

What are you using for pre-amp chores?

Have you tried phono sources yet?

BTW, Congratulations!

Best regards,
Paul S

Page 5 of 6 (132 items) Select Pages:  « First ... « 2 3 4 5 6 »
   Target    Threads for related reading   Most recent post in related threads   Forum  Replies   Views   Started
  »  New  Super Melquiades Amplifier...  About the Super Melquiades Bass....  Melquiades Amplifier  Forum     29  183430  07-16-2005
  »  New  Fun with transformers?..  Re: An amplifier is not a subject but a service.....  Melquiades Amplifier  Forum     7  64959  10-21-2005
  »  New  Building Melquiades: Chronicle of full-range..  Variable Resistors...  Melquiades Amplifier  Forum     43  247109  06-09-2006
  »  New  5 Channel Version of Melquiades..  Very easy....  Melquiades Amplifier  Forum     21  165293  07-23-2006
  »  New  RAAL “Water Drop” tweeter for Macondo...  Your comment takes me by surprise...  Horn-Loaded Speakers Forum     77  660551  02-16-2007
  »  New  The one-stage Melquiades...  Tubes vs. Speakers vs. FR...  Melquiades Amplifier  Forum     73  454590  04-21-2007
  »  New  The single-stage Milq and power Supplies...  Just the tank...  Melquiades Amplifier  Forum     10  63261  05-03-2007
  »  New  A DSET is better then an expensive SET..  DIY Stradivarius...  Audio For Dummies ™  Forum     41  246076  09-21-2007
  »  New  Amplification and Consciousness...  Freedom of expression vs. something to say...  Playback Listening  Forum     15  74088  01-07-2008
  »  New  My (Amplification + Acoustic System): what is next?..  Macondo and Melquiades in the NEW room....  Audio Discussions  Forum     41  201947  01-10-2008
  »  New  All Active! A DSET and multi-way acoustic system...  Hahaha...  Audio Discussions  Forum     14  79586  01-31-2008
  »  New  The Melquiades' "Remote Biasing"..  The Melquiades' "Remote Biasing"...  Melquiades Amplifier  Forum     0  14413  02-05-2008
  »  New  A proper implementation of low-pass filters..  Low Pass...  Melquiades Amplifier  Forum     4  32860  02-18-2008
  »  New  Incorporating active crossovers into DSET..  Thanks...  Melquiades Amplifier  Forum     2  29734  07-22-2008
  »  New  Single-stage Melquiades vs. DHT amps..  A hallucination?...  Melquiades Amplifier  Forum     397  2543842  11-22-2008
  »  New  If you’re multiamping then use passive-line lever cross..  Crossover and DSET?...  Audio For Dummies ™  Forum     3  36296  01-21-2009
  »  New  The DSET perspective examines the Herb Reichert article..  Are you still in Reutlingen, Germany?...  Melquiades Amplifier  Forum     5  66736  07-01-2009
  »  New  Training amplifiers..  The Milq's demands for burning...  Melquiades Amplifier  Forum     16  79758  03-20-2006
  »  New  Think ahead how to measure the DSETs gain...  The calibration mode is for DSETs not for SET....  Audio For Dummies ™  Forum     2  18507  09-17-2009
  »  New  Amplifiers heat… a real-estate solution?..  I have seen this simular concept...  Melquiades Amplifier  Forum     1  15099  09-18-2009
  »  New  About DSET-driven multi-way acoustic system maintenance..  About DSET-driven multi-way acoustic system maintenance...  Horn-Loaded Speakers Forum     0  17742  11-01-2009
  »  New  Thomas Mayer’s Triamp..  It is much more then juts "properly calculated and...  Melquiades Amplifier  Forum     2  25154  03-03-2010
Home Page  |  Last 24Hours  | Search  |  SiteMap  | Questions or Problems | Copyright Note
The content of all messages within the Forums Copyright © by authors of the posts
